psi sensor 150psig

Why pay more than you have to? This is the same sensor that other ECU/EMS manufacturers put their own label on. No risk for the buyer , if it isn't compatible with your controller just return it in perfect cosmetic and working condition (do not scratch it). Feel free to ask us first. This is a general purpose industrial sensor commonly used by many ECU's as an input for oil pressure or any other pressure measurement within it's pressure range). The transfer function is listed below in the specs. This sensor tolerates 5 volts on the power supply input do not apply 12 volts, DO NOT reverse wire it! Compatible with Autronic,AEM,GEMS,Hondata S300, Neptune, eCtune, Crome, etc.Halltech,Megasquirt,Microsquirt, ,Vipec,LINK and most others. (ebay allows listing what brands this is compatible with here,in this description (not the title) , others may and do relabel this sensor) DO NOT CONNECT THIS TO 12 volts!!! Instructions and tuning tips available

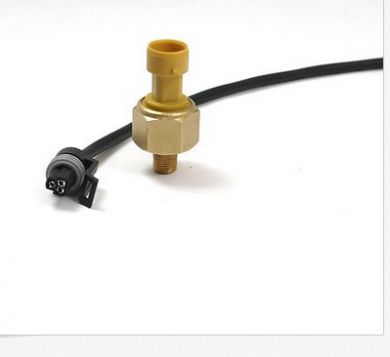

 150 PSIg MAP Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 150 PSIg Brass Sensor, Connector with pre-terminated pigtail This is a psiG (gauge) not psiA (absolute) sensor so this is not meant to read vacuum, it is for oil pressure mostly. Not normally used for MAP, we have other sensors for MAP usage. Manufacture supplied Specifications: (note: just like A.E.M's the body color of these could be yellow or black as they are both made by the same manufacturer) Sensor Performance Specifications: Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity Operating Temp: -20C to 105C / -4F to 221F Burst Pressure: 300PSI Response Time: < 1mS Wetted Materials: 304L & 316L Stainless Steel Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes Weight: <85g Supply Current: <6mA at 5 Vdc Output: .5 to 4.5Vdc Linear Transfer Function: PSI = (37.5*(Voltage))-18.75 <<--THIS is what you need to program into your ECU, some will have this function as a preset, most others allows configuring it. Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output) other: Elec. Termination: Packard type connection,Integral weatherproof connector, with assembled pigtail(Supply Voltage 5Vdc +/- .5, Ground, Output) Red: +5volt sensor power from ECU. Black: Sensor Ground from t ECU. Blue (sometimes green) : 0-5 volt signal output to ECU. Sealing Rating: IP65

Value Added: FREE domestic USA shipping. INCLUDES pre-terminated PIGTAIL instead of pesky terminals that you have to solder or specially crimp.
